Capacity:
30 tons
Table size:
1250 mm x 1800 mm
Max. sheet size (with reposition):
1250 mm x 3600 mm with reposition
No. of stations:
58 Nos with 2 auto index
No. of station:
B – 2 nos. Auto index
Table traverse speed:
2000”/min
Turret rotation speed (bi-directional):
30 RPM
Drive motors:
A.C. Servo
Control axis:
4 Nos - X, Y, T & C
Stroke per minute:
180 SPM (25.4 mm increment)
Nibbling. hit rate:
200 HPM
No. of work clamps:
2 nos.
Electric power required:
35 KVA

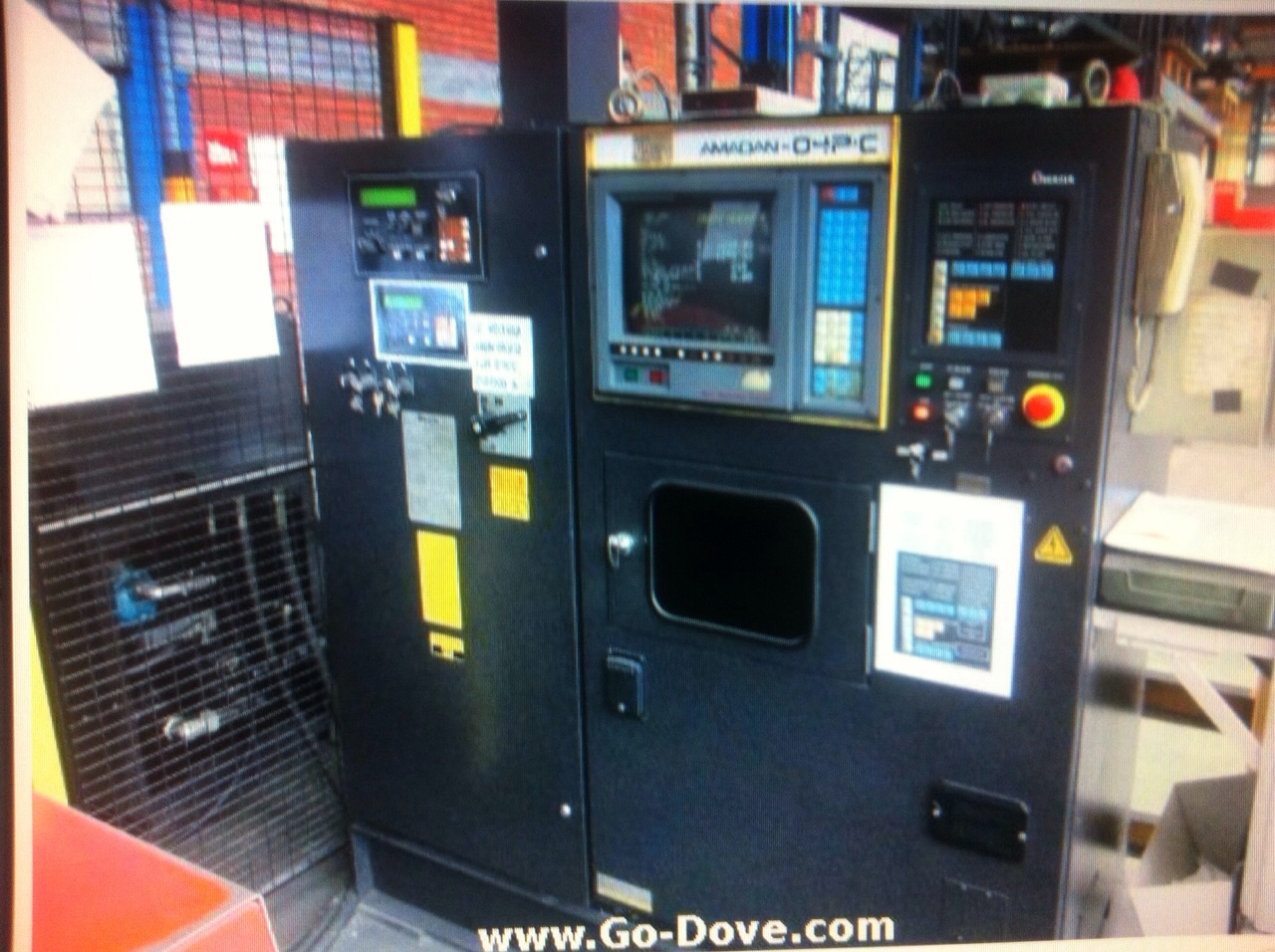

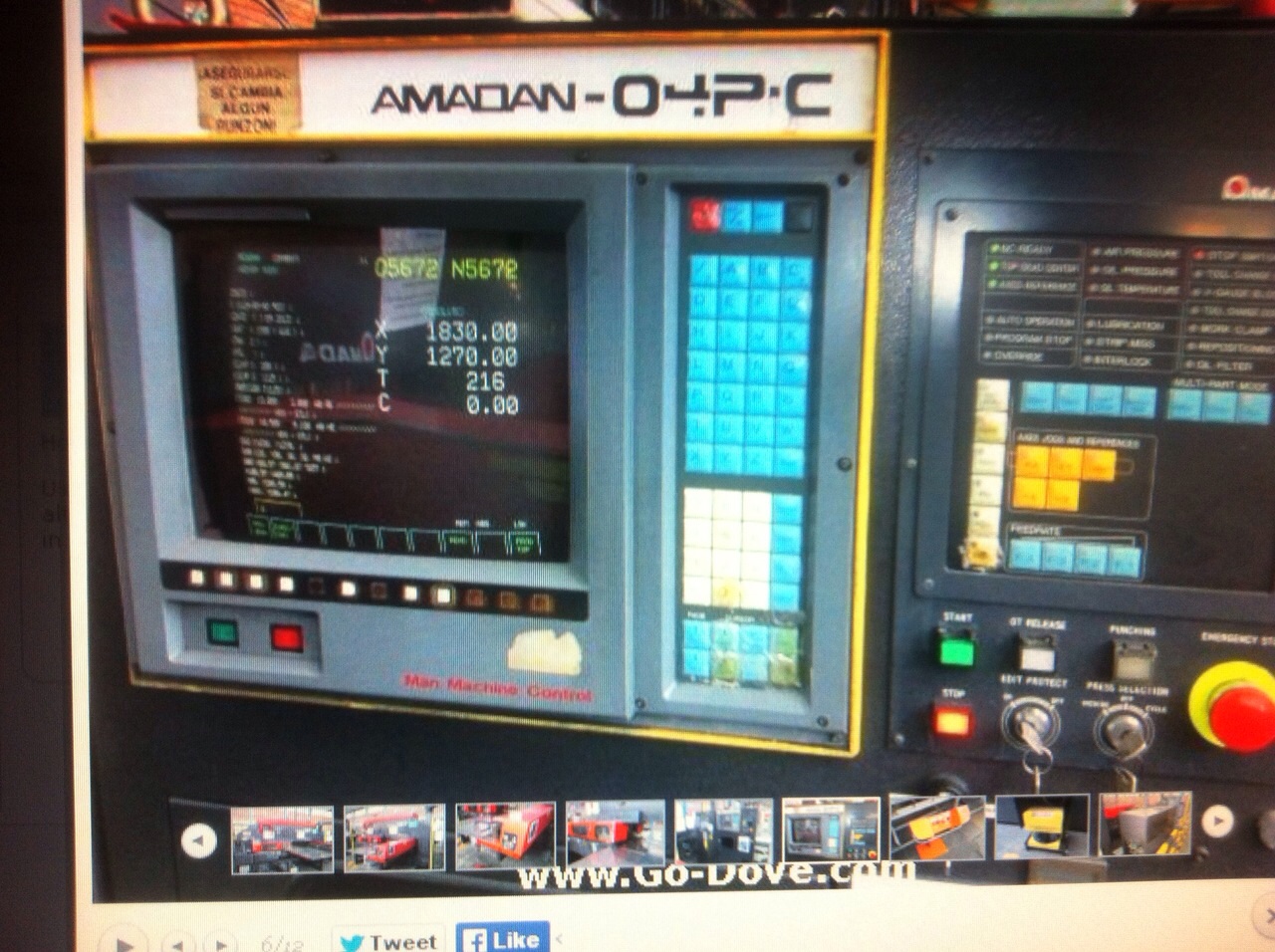

Controller: FANUC 04PC
