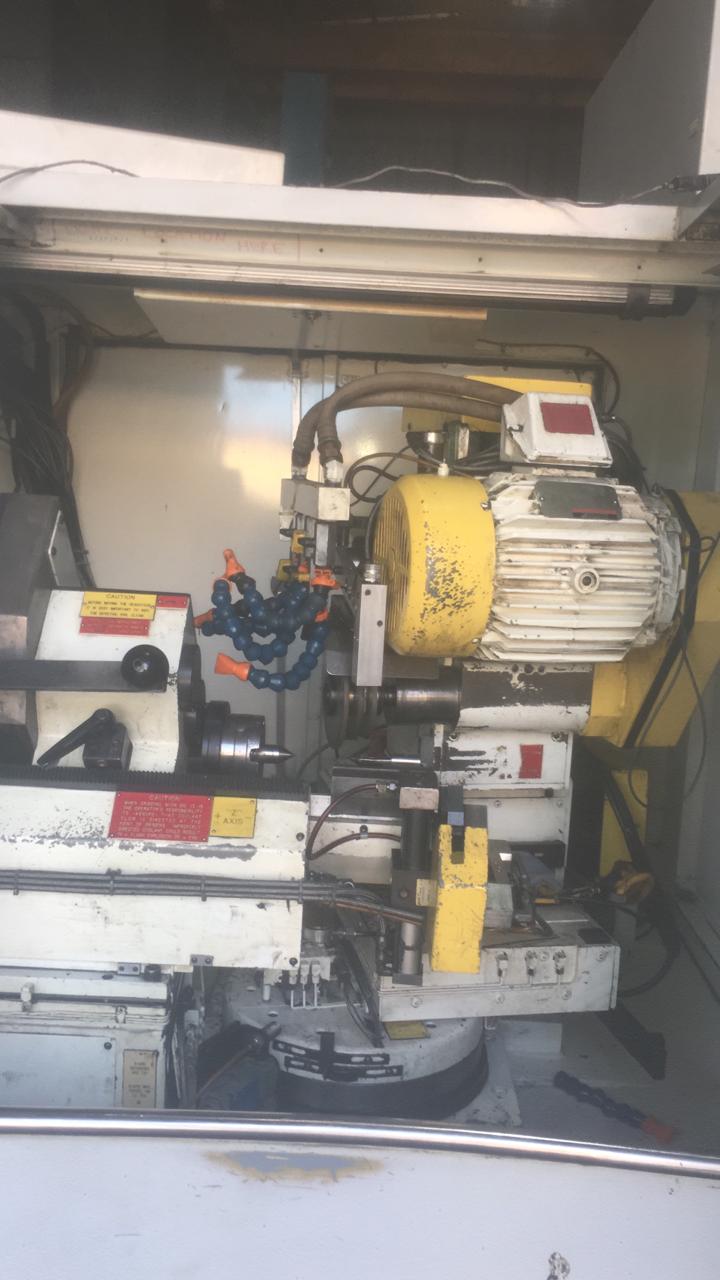

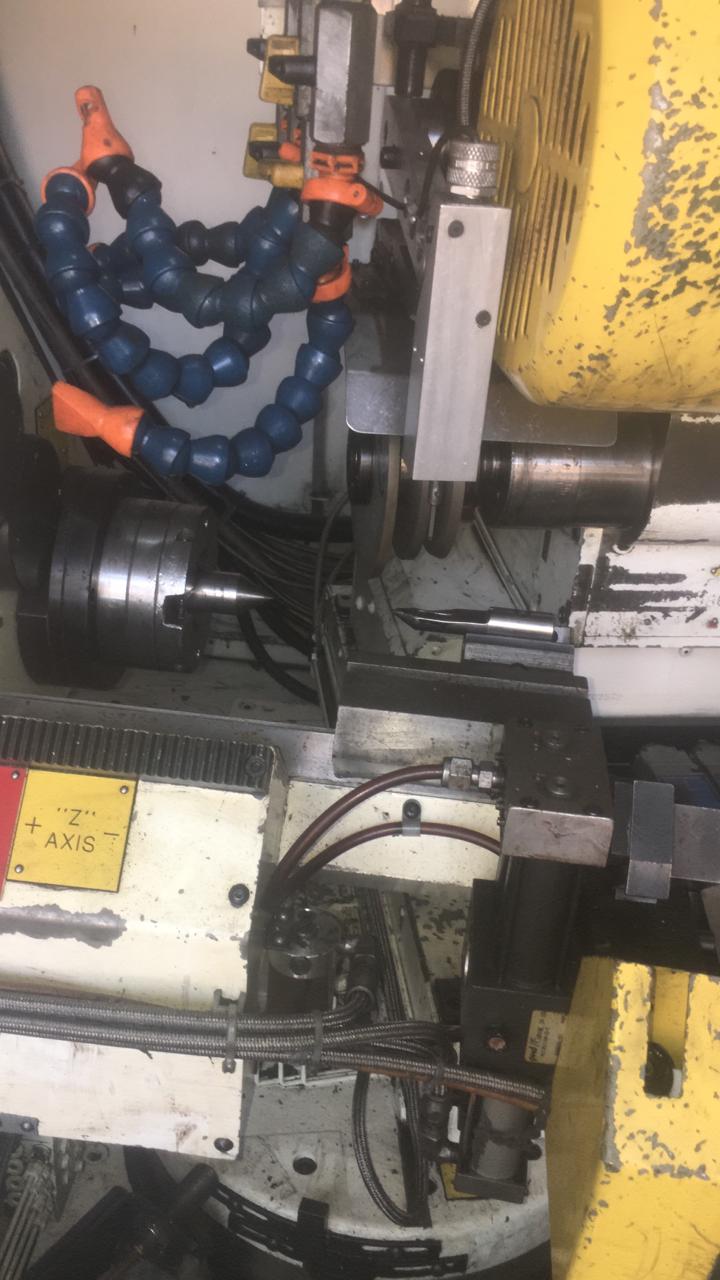

Star ATG-6AC CNC Tool & Cutter Grinding Machine

Star ATG-6AC CNC Tool & Cutter Grinding Machine

Workpiece Diameter: 0.12" - 4"
Workpiece Length (Between Centers): 27"
Collet and Bushing Size: Unlimited
Grinding Wheel Diameter: 6"
Grinding Spindle Motor: 7.5 HP
Grinding Spindle Motor Speed: 1800 - 5275 RPM
X-Axis Travel: 8.4"
Y-Axis Travel: 4.6"
Z-Axis Travel: 11.5"
W-Axis Travel: 3"
A-Axis Travel: 0-360°
B-Axis Travel: 0-90°
Smallest Linear Programmable Movement: .0001"
Smallest Rotary Programmable Movement: .0005°
Linear Axis Feedback Resolution: .000020"
Rotary Axis Feedback Resolution: .0005°
Coolant Tank Capacity: 112 Gal.

Equipped With:

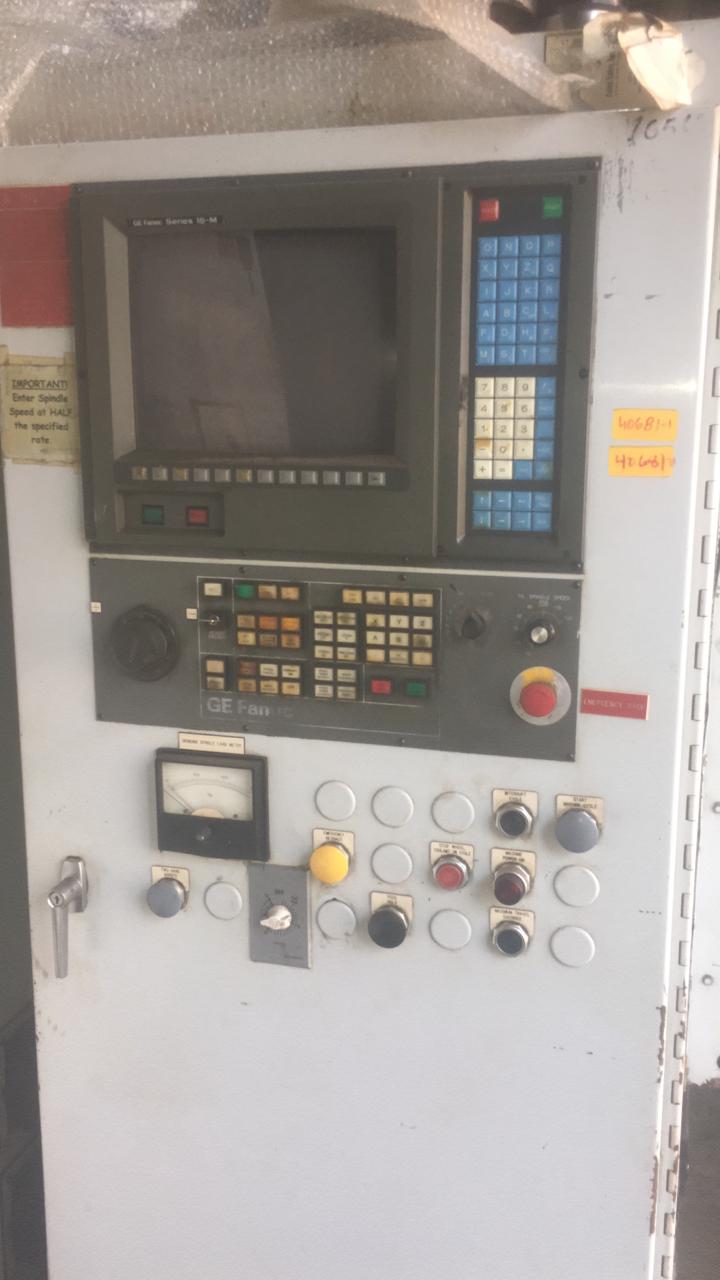

GE Fanuc 15-M CNC Control
Variable Speed Spindle
