CNC TURRET PUNCH PRESS

CNC TURRET PUNCH PRESS

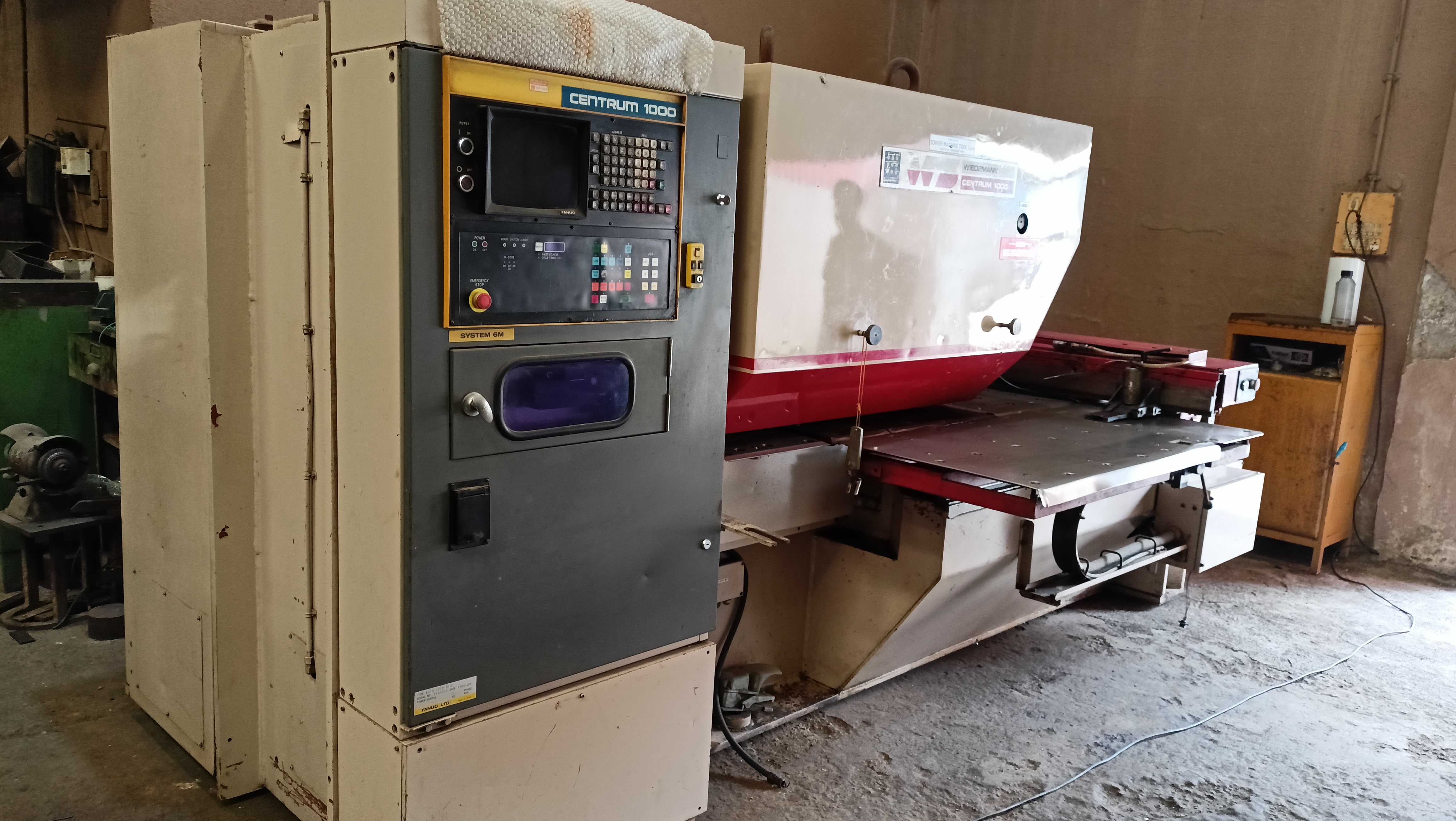

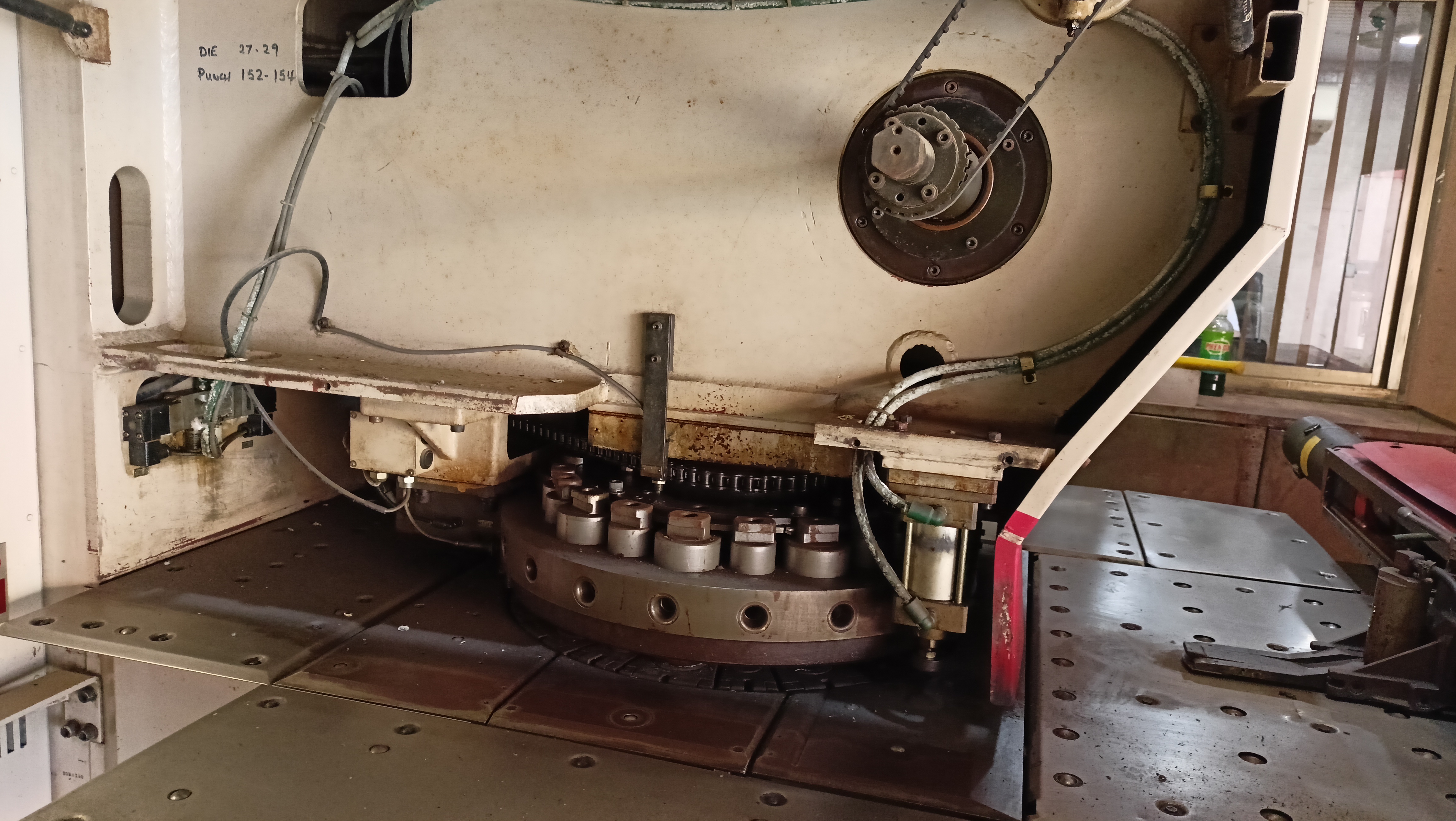

WIEDEMANN CNC TURRET PUNCH Machine Model No.: Centrum 1000/Q Punching Capacity: 3" Dia. in .125" Mild Steel Press Drive Motor" 5 H.P. Throat Depth: 41.3" Table Travel: X Axis- 40.5" / Y Axis - 40.5" Table Sheet Capacity: 40" x 40" (before reposition) / 40" x 80" (with repositioning) Maximum Sheet Weight: 110 lbs. Ram Stroke: 1.2" Clearance: .875 (stripper to die) Turret Capacity: 20 Stations Approximate Machine Weight: 13,4000 Approximate Machine Dimensions: 117" x 138" (floor space) 77" (Press Height) 38" (table height) Electrical Power Requirements: 15KVA - 20 amps at 460 volts, 3 phase Air Supply Requirements: 3.5 CFM at 70 PSI Maximum Table Traverse Speeds: X Axis 2000"/min / Y Axis 2000"/min
